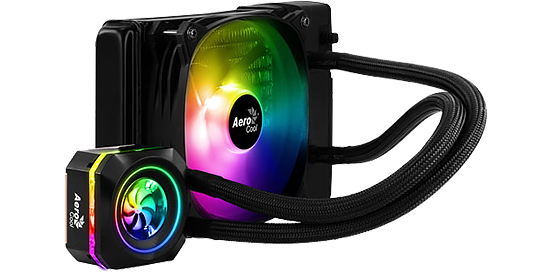

COMBAT UNWANTED HEAT WITH THE PULSE L120The Pulse L120 from Aerocool is an affordable liquid cooling solution that offers incredible looks and vibrant lighting. It has eight unique lighting modes that you can use and adjust via an LED control switch, with compatibility with RGB capable motherboards for complete colour synchronization. The high-performance RGB fan works to keep everything cool even under the most demanding conditions. The Pulse liquid cooler uses a pure copper water block for superb heat conductivity and teflon coated tubing for improved durability. This innovative cooler utilizes anti-vibration pads to dampen vibrations fron the fan, and a unique motor with a balanced impeller and high-quality bearings for whisper-quiet operation.
Intel LGA755/1366/115X/2011/2066
AMD SocketsAM2/AM3/AM4/FM1/FM2
120mmRadiator Size
INTRICATELY DESIGNED MOTORThe Pulse liquid cooler houses a motor that is built with a balanced impeller and high-quality bearings that provides near-silent performance. It comes with a built-in, cosmetic fan that spins whenever the motor is turned on.
ALLOW PERFORMANCE TO LAST EVEN LONGERThe pump on the Pulse cooler is placed together with the radiator instead of the water block. This reduces vibrations and lessens stress on the CPU, helping to extend its lifetime and give you perfect performance for a longer amount of time.
LOW-DENSITY FINS PER INCH RADIATORLow-density fins per inch (LFPI) on the radiator allows for air generated by the fan to pass through easily and nearly unobstructed while providing just the right amount of heat dissipation needed for your system. This achieves a perfect balance between cooling performance and noise reduction.

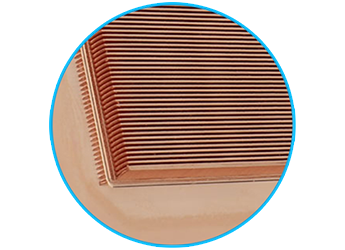

PURE COPPER WATER BLOCKThe Pulse houses a pure copper water block that provides superior heat conductivity. The block's micro channel design offers faster heat dissipation, keeping your CPU at an ideal temperature under any performance scenarios.

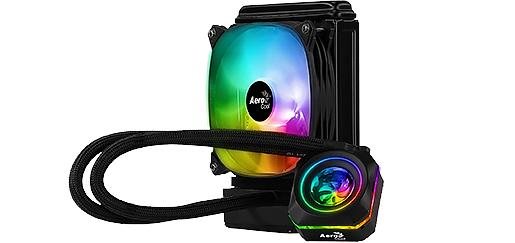

ADDRESSABLE AND COMPATIBLE LIGHTSCustomize your cooler with 16.8 million vibrant colours. The Pulse liquid cooler is compatible with addressable RGB motherboards and their dedicated softwares. Use ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion and ASRock RGB Sync to sync lighting on your motherboard, cooler, and other compatible components to turn your system into the ultimate light show.

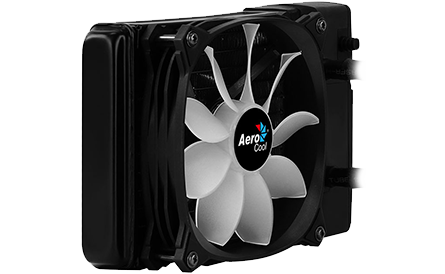

FLOWER-SHAPED COOLING FANThe unique flower-shaped fan design increases air pressure and reduces air resistance to deliver superb cooling performance. The high performance silent fan is designed to maximize cooling efficiency whilst minimizing noise, and the anti-vibration pads work to absorb and dampen fan vibrations to further silence fan operation.
VERSATILE CONNECTIVITY SOLUTIONSThe Pulse comes with three connectors for maximum compatibility. Set up your liquid cooler using any one of the following methods to enjoy the incredible performance the Pulse has to offer.
ADDRESSABLE RGB MOTHERBOARD CONNECTORProvides access to your Addressable RGB motherboard’s RGB functions.
SATA POWER & +5V RGB FAN CONNECTORFor access to the Pulse’s built-in LED lighting effects and an additional Addressable RGB fan or other 3rd party addressable RGB products.
SINGLE SATA POWER
CONNECTORFor access to the Pulse’s built-in LED lighting effects.
Model Name | Pulse L120F |
Block Material | Copper |
Radiator Material | Aluminum |
Radiator + Pump Dimensions | 176mm(L) x 123.5mm(W) x 40.5mm(T) |
Pump | |
Speed | 2800 rpm |
Rated Voltage | 12 V |
Power Consumption | 8.4 Watts |
Noise | < 25dBA |
Bearing Type | Ceramics Bearing |
MTBF (Mean Time Before Failure) | 80000 hrs. |
TDP (Thermal Design Power) | 200W |
Fan | |
Speed | 600-1800 rpm |
Connector | PWM 4-Pin |
Dimensions | 120mm x 120mm x 25mm |
Bearing Type | Hydraulic Bearing |
Starting Voltage | 9 V |
Rated Voltage | 12 V |
Rated Current | 0.16 A (One Fan) |
Power Consumption | 1.92 Watts (One Fan) |
Air Pressure | 0.59 – 1.34 mm-H2O |
Air Flow | 29.84-71.65 CFM |
Noise Level | 10.5 – 31.8 dBA |
MTBF (Mean Time Before Failure) | 60000 hrs. |
Socket | LGA 2066/2011-V3/115X/1366/775 FM1/FM2/AM4/AM3+/AM3/AM2+/AM2 |
