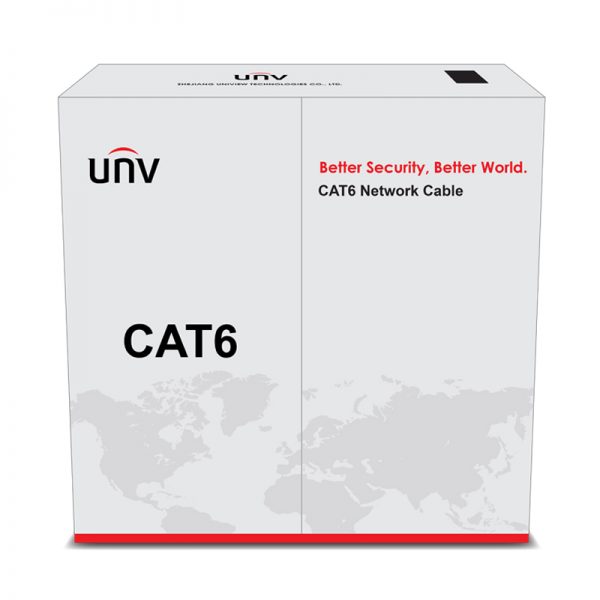

Uniview CAB-LC3100A-IN UTP Network Cable AWG23 - Blue

Name: Uniview CAB-LC3100A-IN UTP Network Cable AWG23 - Blue
Brand: Uniview
Price: 35999.00 PKR
Availability: InStock

Product Id 351728

Sold By Cislink Tech (Karachi) Feedback: 100% Positive

Quantity

- +

Ask an Expert

Price Alert Price Beating Schedule a Call

Uniview CAB-LC3100A-IN UTP Network Cable AWG23 Blue

Cable
Product model	CAB-LC3100A-IN
Test Standard	ISO/IEC11801 ED.2 ANSI/TIA-568-C.2
Product specification	Cat6. U/UTP. 4×2×0.57mm
Packing length	305±1m
Ambient temperature	-20℃～60℃
Rip-cord	Yes
Crossing backbone	Yes
Conductor
AWG	23
Nom.O.D.(mm)	0.57±0.005 mm
DC resistance	≤95 Ω/km
Material	Solid-Bare Copper
Insulation
Diameter	1.02±0.05 mm
Material	HDPE
Thickness	0.2±0.02 mm
Color	Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Pitch
Offset pitch	≤20 mm
Cable pitch	≤120 mm
Sheath
Material	PVC(complies RoHS/REAC)
Thickness	0.6±0.05 mm
External O.D.	6.2±0.3 mm
Tensile strength	>13.5 Mpa
Color	Blue(RAL5015)
Surface Printing
Color	Black
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Case number	Yes
Packing
Packing	Carton
Once packing dimension	420mm205mm420mm
Twice packing dimension	450mm440mm445mm
